Essential Truss Types for Efficient Residential Construction

In this article, we delve into the world of roof trusses. We'll explore their history, their design, and the materials used to construct them.

We'll also examine the different types of roof trusses used in residential construction. Each type has its unique characteristics, advantages, and applications. Finally, we'll look to the future. We'll consider how technological advancements are shaping the evolution of truss design and construction.

The world of structural engineering is a fascinating one. It's a realm where science, art, and technology intersect, shaping the built environment around us.

One of the key elements in this field is the humble roof truss. It's a component that plays a crucial role in residential design and construction.

Roof trusses are the unsung heroes of a building's structural support system. They bear the weight of the roof, transferring it to the building's outer walls.

But they're not just about function. The design of roof trusses can significantly influence the aesthetics of a home. They can create dramatic vaulted ceilings, or allow for open, spacious interiors.

So, whether you're a structural engineering student or a construction company CEO, join us on this journey. Let's explore the fascinating world of roof trusses together.

The Fundamental Role of Trusses in Residential Construction

Trusses are integral to the structural integrity of a residential building. They form the skeleton that supports the roof, distributing the load evenly across the structure.

Read more about Load Bearings to learn more about load bearing in structural designs.

This load distribution is crucial. It ensures that the weight of the roof doesn't cause the walls to buckle or the foundation to crack.

But trusses aren't just about structural support. They also play a significant role in the architectural design of a home.

The shape and design of a truss can influence the interior layout of a building. It can create high ceilings, open spaces, or unique architectural features.

Moreover, the choice of truss can impact the energy efficiency of a home. It can affect the amount of insulation that can be installed, and the flow of air within the roof space.

Historical Evolution of Truss Design

The concept of the truss has been around for centuries. Early trusses were simple structures, often made from timber and used in small-scale buildings.

As engineering knowledge advanced, so did truss design. The 19th century saw the development of iron and steel trusses, allowing for larger spans and more complex structures.

Today, truss design is a sophisticated discipline. It combines advanced materials, computer-aided design, and innovative fabrication techniques to create efficient, durable, and aesthetically pleasing roof structures.

Key Components and Materials of Roof Trusses

A roof truss is made up of several key components. These include the chords, the webs, and the connections.

The chords are the outer members of the truss. They bear the majority of the load and transfer it to the supports.

The webs are the inner members. They provide stability and help distribute the load across the truss.

The connections, or joints, hold the truss together. They are critical to the truss's performance, as they must resist bending and shear forces.

Common materials used in truss construction include:

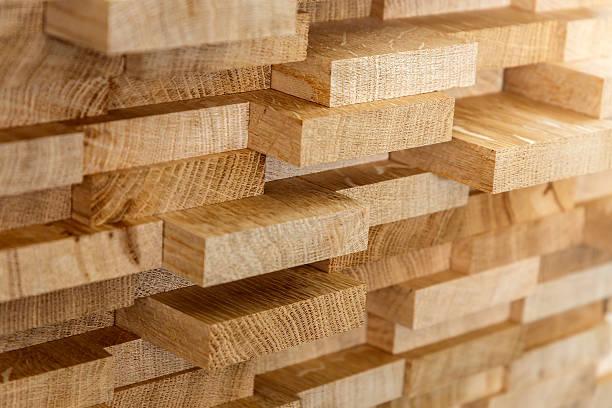

• Timber: A traditional choice, known for its strength and ease of use.

• Steel: Used for its durability and resistance to environmental factors.

• Engineered wood products: These offer enhanced performance characteristics compared to traditional timber.

Each material has its advantages and considerations, influencing the choice of truss for a particular project.

Checkout our comprehensive guide to structural engineering terms and definitions to learn foundational concepts.

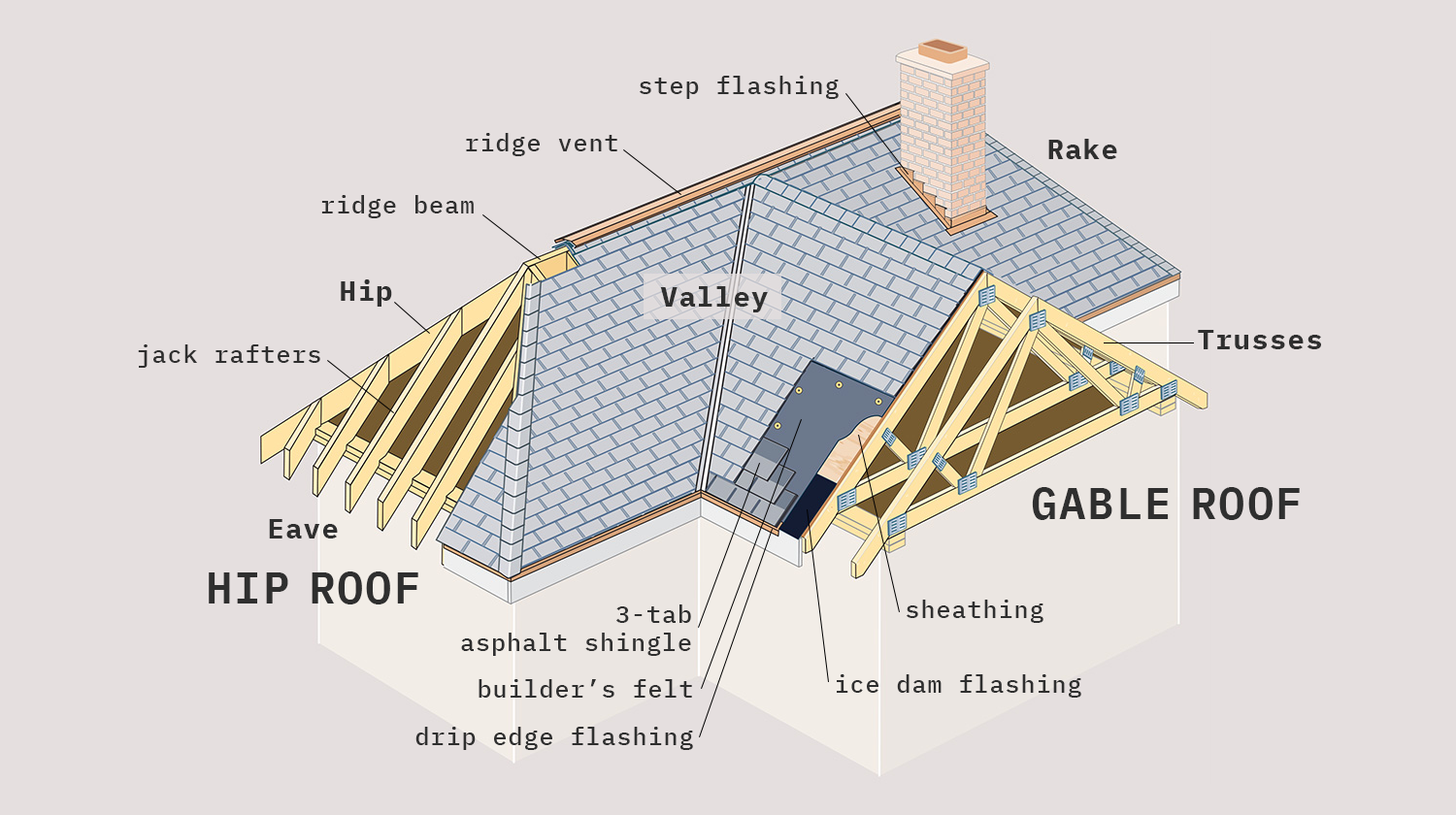

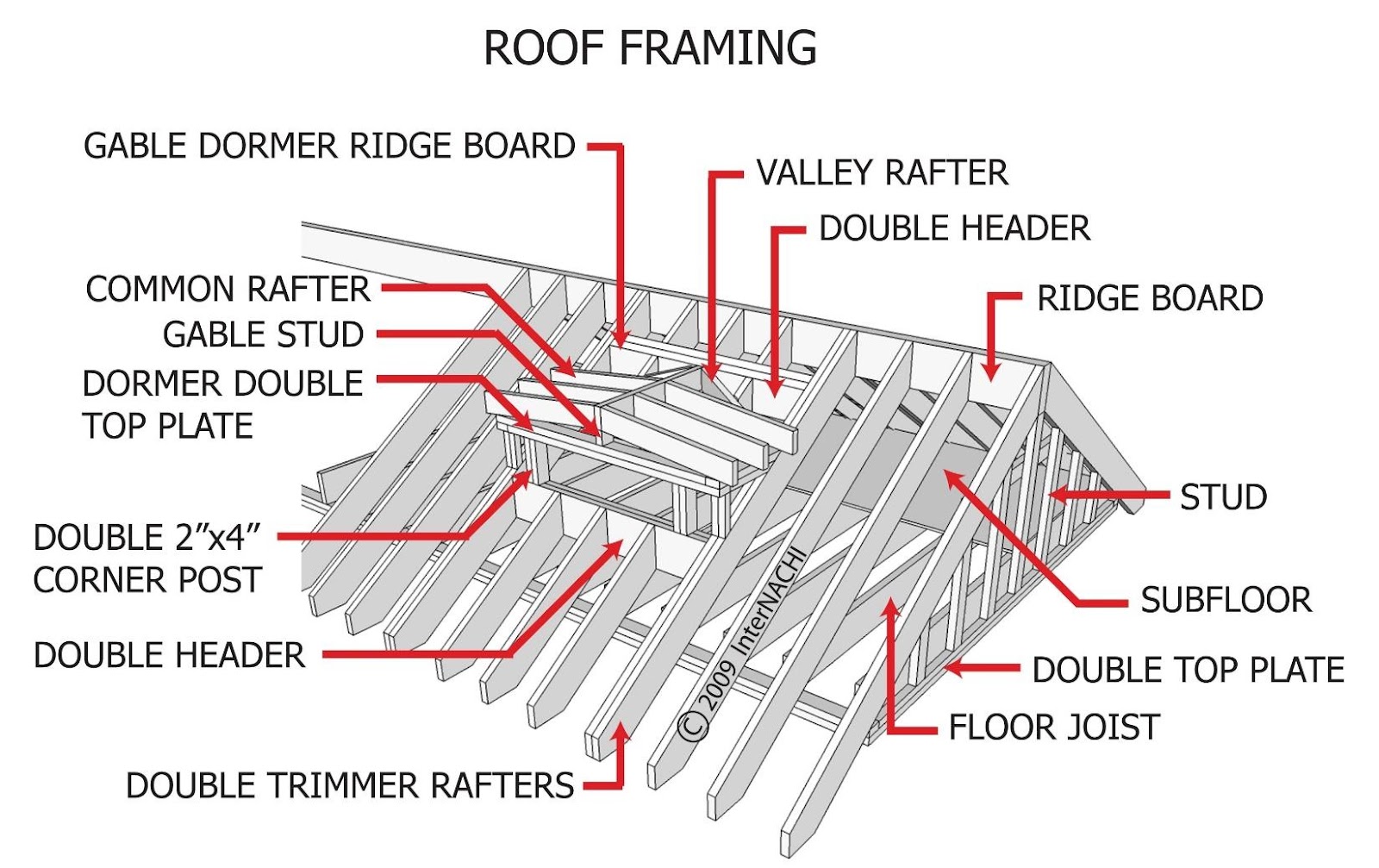

Understanding Roof and Truss Terms and Components

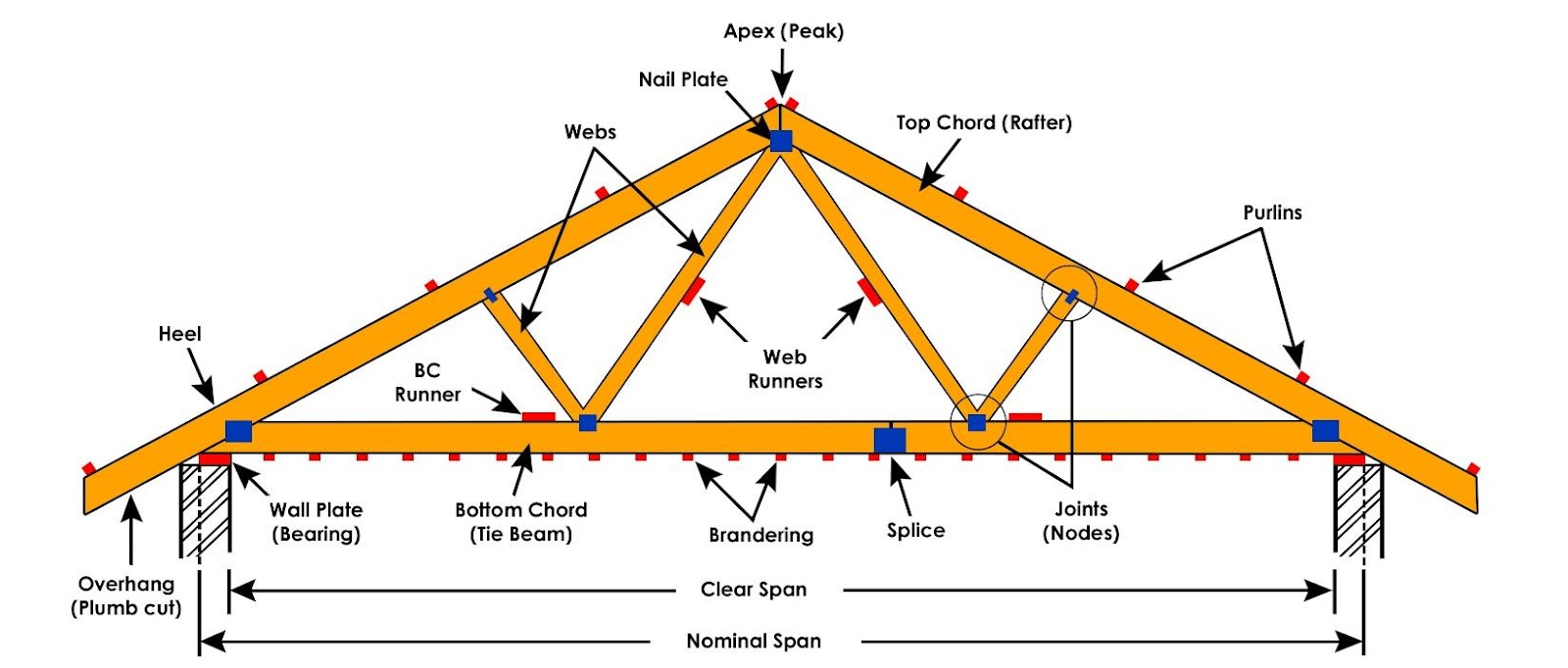

Roof Truss Components

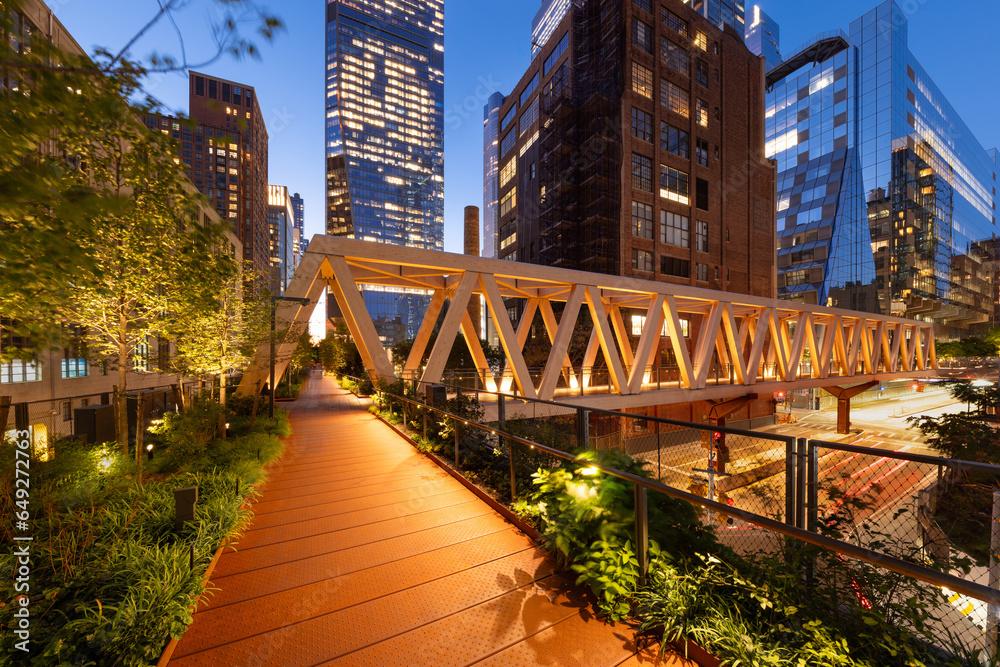

Truss Bridge

A truss bridge uses a framework of interconnected triangles, known as trusses, to support the bridge deck and distribute loads efficiently. This design maximizes strength and stability while minimizing the amount of material needed. Truss bridges are favored for their ability to span long distances and their durability under heavy loads. The triangular configuration effectively transfers forces through the structure, reducing stress on individual components and ensuring a reliable and robust bridge design.

Other Important Components & Terms

Common Types of Roof Trusses in Residential Construction

There are numerous types of roof trusses, each with its unique design and application. The choice of truss depends on various factors, including the span of the roof, the load it must bear, and the architectural style of the building.

The King Post, Queen Post, Fink, Howe, and Pratt trusses are among the most common truss types used in residential construction. Each of these trusses offers a unique combination of strength, efficiency, and aesthetic appeal.

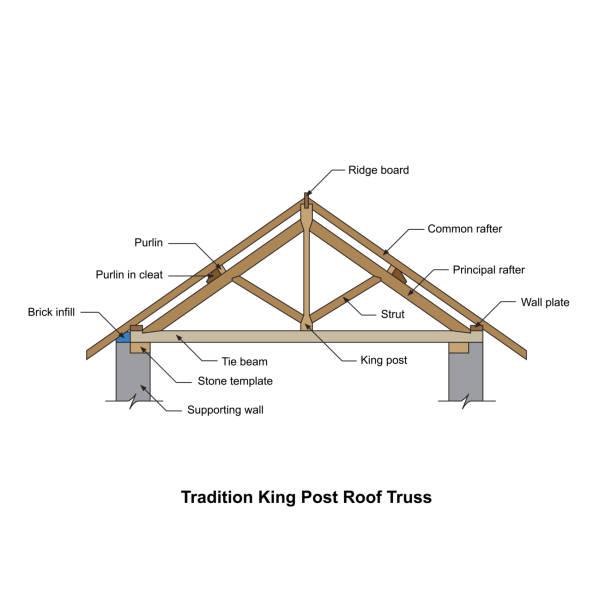

King Post Roof Truss

The King Post Truss is one of the simplest and oldest types of trusses. It consists of two inclined rafters, a horizontal tie beam, and a central vertical post. A king post is the central vertical support member in a triangular truss, commonly used in both roof and bridge construction. It connects the apex of the truss to the base, transferring loads from the top of the structure downward. This simple yet effective design is often employed in short to medium spans due to its efficiency in minimizing material usage while providing structural stability. The king post truss is typically used for lightweight structures where heavy support isn't necessary, making it a cost-effective solution. Additionally, its straightforward geometry allows for quick construction and easier maintenance compared to more complex truss designs. In traditional timber framing, king posts have been widely used for centuries, combining strength and simplicity.

This truss is ideal for small spans, typically up to 8 meters. It's a popular choice for residential buildings due to its simplicity and cost-effectiveness.

The king post is crucial in truss design for several reasons:

1. Load Distribution: The king post helps distribute loads from the rafters to the truss’s base or supports. By channeling forces downward, it ensures that the truss can handle vertical loads effectively.

2. Structural Stability: It enhances the overall stability of the truss. The vertical alignment of the king post helps to maintain the shape and integrity of the truss under load, preventing excessive bending or deformation.

3. Span Capability: The inclusion of a king post allows for greater span lengths compared to simpler truss designs. It provides additional support in the center of the truss, enabling it to cover larger distances without additional intermediate supports.

4. Design Efficiency: The king post contributes to a more efficient use of materials by optimizing the load-bearing capacity of the truss. This efficiency can reduce material costs and improve construction practices.

Overall, the king post is essential for ensuring that the truss performs well under load and maintains structural integrity.

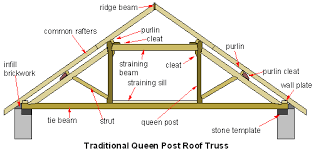

Queen Post Roof Truss

The Queen Post Truss is a variation of the King Post Truss. It features two vertical posts instead of one, providing greater support for longer spans.

This truss can span up to 12 meters, making it suitable for larger residential buildings. Its design also allows for the inclusion of a room within the roof space.

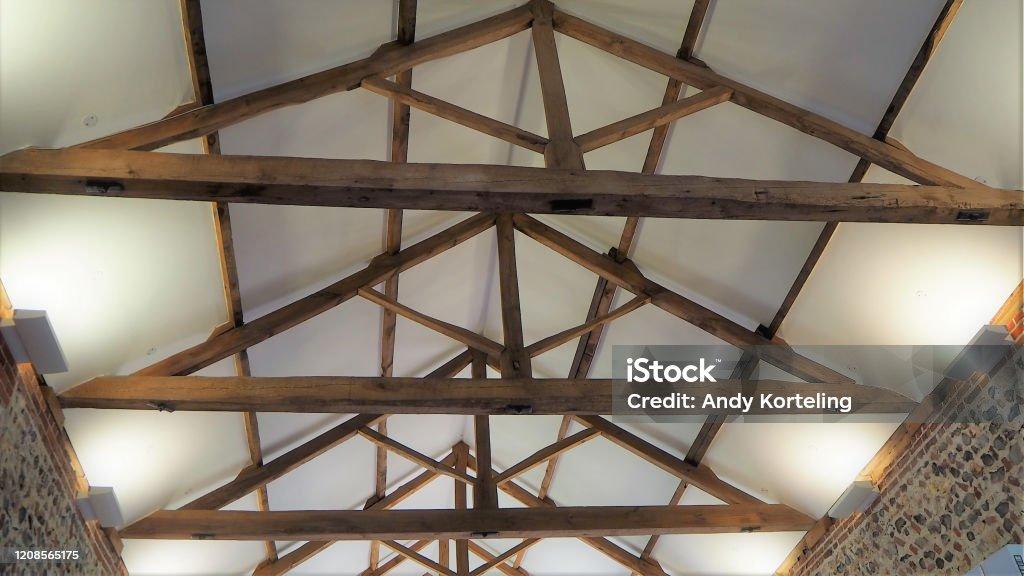

Example of Queen Post roof truss.

by Alice Alinari (https://unsplash.com/@alicealinari)

Scissor Roof Truss

Scissor trusses have sloping bottom chords. They intersect at a central point and form a scissor-like shape. This design features angled bottom chords. They cross in an "X" at the center. This is unlike common trusses or king post trusses. Those have horizontal bottom chords that do not intersect.

This unique design adds height and openness. It is great for open-plan living. It is also good for commercial spaces with vaulted or cathedral ceilings.

Scissor trusses suit spans of 12 meters or less. These trusses have complex designs and constructions. Thus, they cost more than simpler trusses, such as King and Queen Post Trusses.

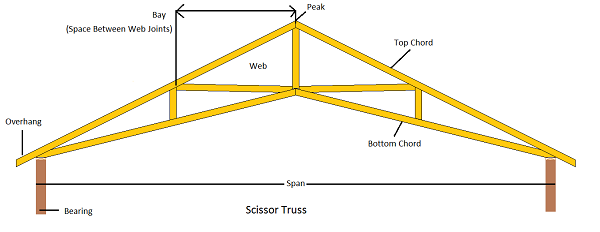

A diagram showing common components of a Scissor roof truss

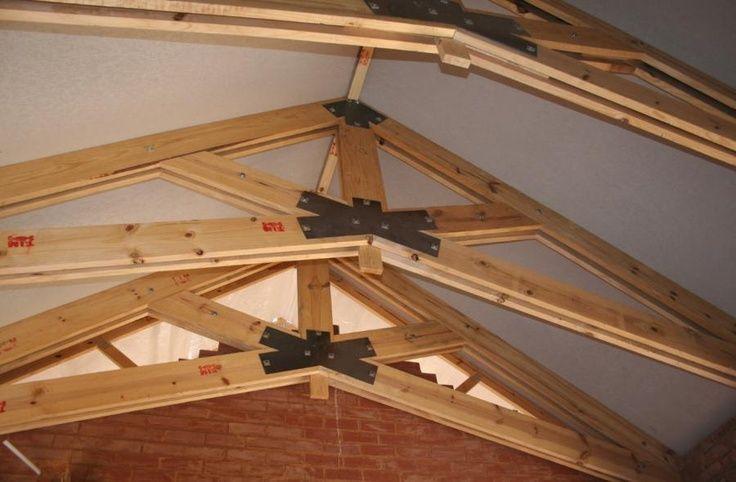

Example of a scissors roof truss.

Attic Roof Truss

Attic roof trusses are a variant of the king post truss. Designers have incorporated a room within the roof space.

These trusses are great for adding living or storage space in the roof. You can do this without adding an extra level or more land. The design allows for an extra room in the roof. Makes optimal use of available space.

Their design is complex. It includes provisions for a floor and ceiling. This makes attic roof trusses more expensive than king-post and queen-post trusses. This complexity necessitates extra materials, which contributes to the higher cost.

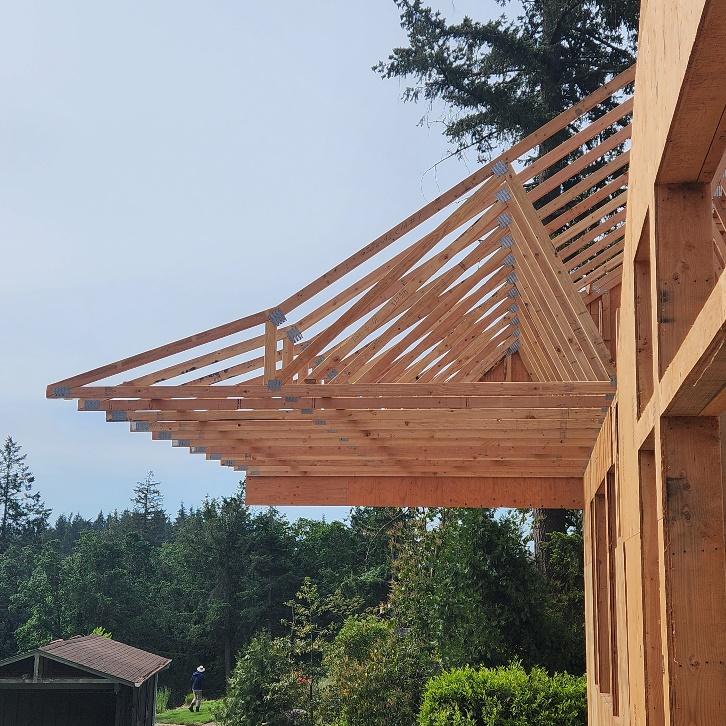

A diagram showing common components of an Attic roof truss.

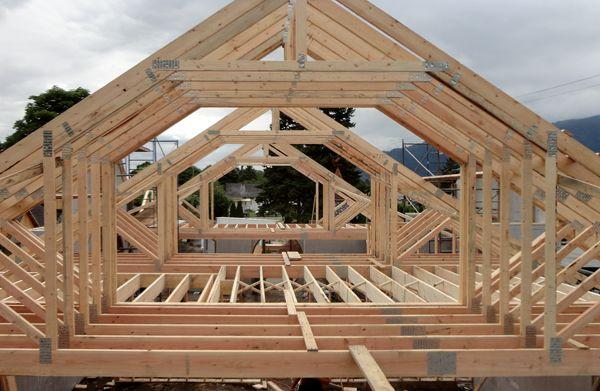

Example of Attic roof truss.

Fink Roof Truss

The Fink Truss is a common choice for residential roofs due to its lightweight design and cost-effectiveness. It features a web configuration that provides excellent load distribution.

This truss can span up to 16 meters, making it versatile for a range of residential applications. Its design also allows for the inclusion of insulation within the roof space.

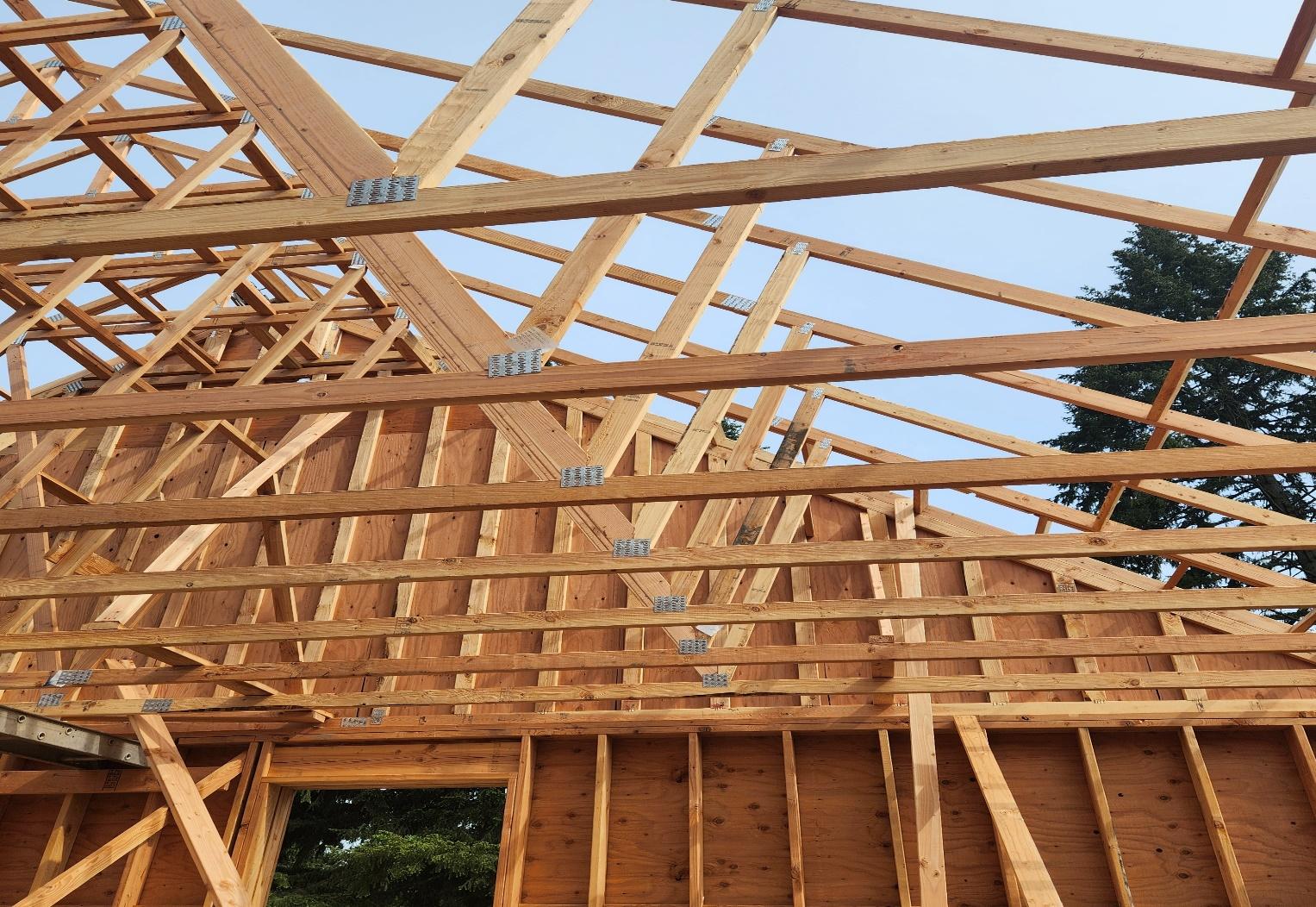

A diagram and example showing common components of a Fink roof truss.

Howe Roof Truss

The Howe Truss is recognized for its strong, sturdy design. It features vertical members that take tension and diagonal members that handle compression.

This truss is versatile and can be used in both residential and commercial structures. It can span up to 30 meters, making it suitable for larger buildings.

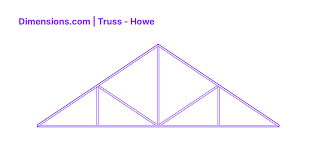

Howe Truss Design

by Bjorn Agerbeek (https://unsplash.com/@bjornagerbeek)

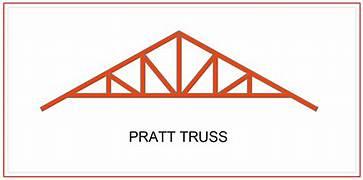

Pratt Roof Truss

The Pratt Truss is another popular choice for residential roofs. It features vertical members that handle compression and diagonal members that take tension.

This truss is known for its excellent load distribution. It can span up to 20 meters, making it a versatile choice for a range of residential applications.

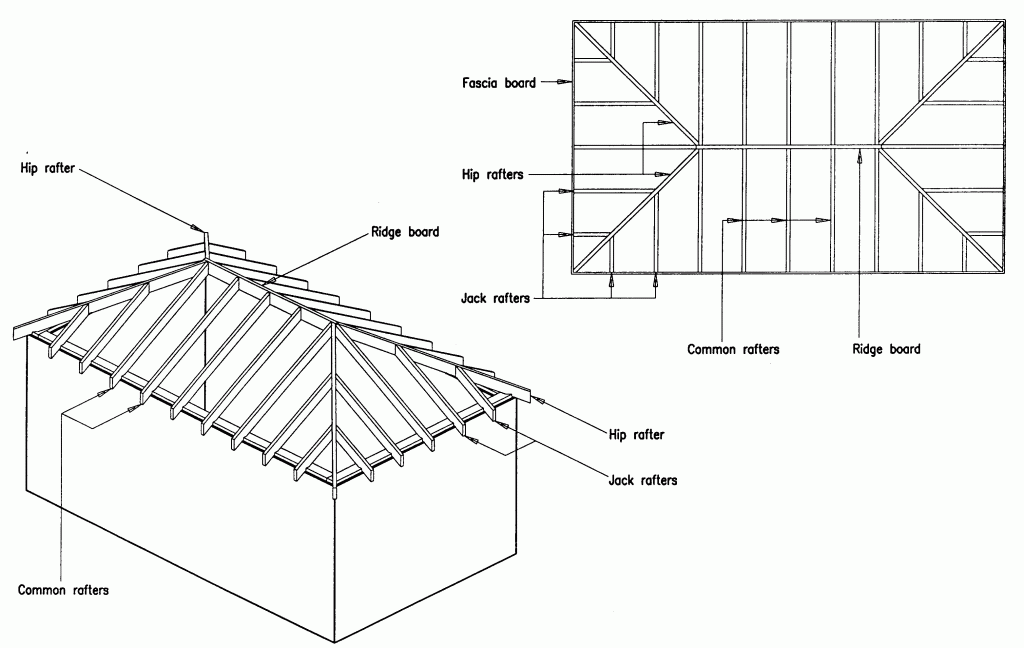

**Hip Roof Truss **

Hip Trusses are key parts of hip roofs. Their design's four sides integrate seamlessly with the building's walls.

The trusses provide key support for homes and businesses. They make the structures stronger and more attractive.

Designing hip trusses can be harder and more costly. This is especially true for larger spans. It's due to their structural complexities. Yet, they are robust. This makes them durable. They are ideal for areas prone to harsh weather.

Builders collaborate with architects in a unified effort. They customize hip truss designs to meet specific project requirements. They balance function and aesthetics.

A diagram showing common components of a hip roof truss.

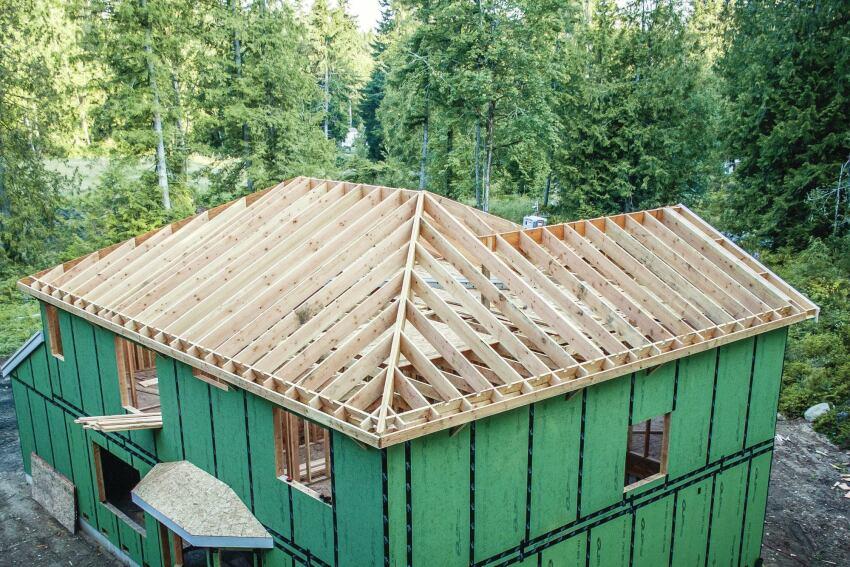

Example of a hip roof truss.

**Gable Roof Truss **

Gable trusses are key parts of gable roofs. They have a simple design with two sloping sides that meet at a central ridge.

These trusses support the roof's weight. They transfer loads to the building's walls effectively.

Gable trusses have a simple design. They are cost-effective, especially for shorter spans. This makes them popular in home and small business construction.

Builders value gable trusses. They are practical and strong. They add to the efficiency and aesthetic appeal of the roof.

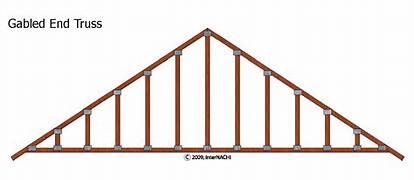

 A diagram showing common components of a Gable Truss.

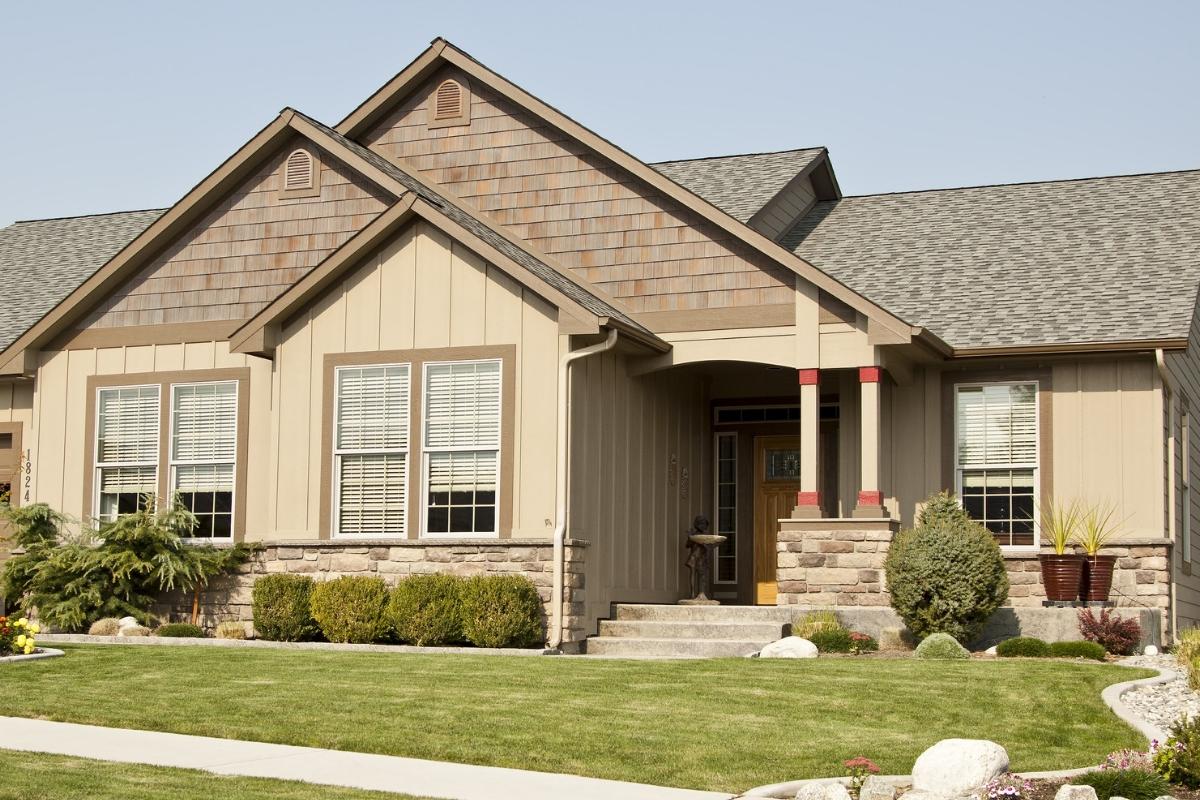

Example of a Gable Truss.

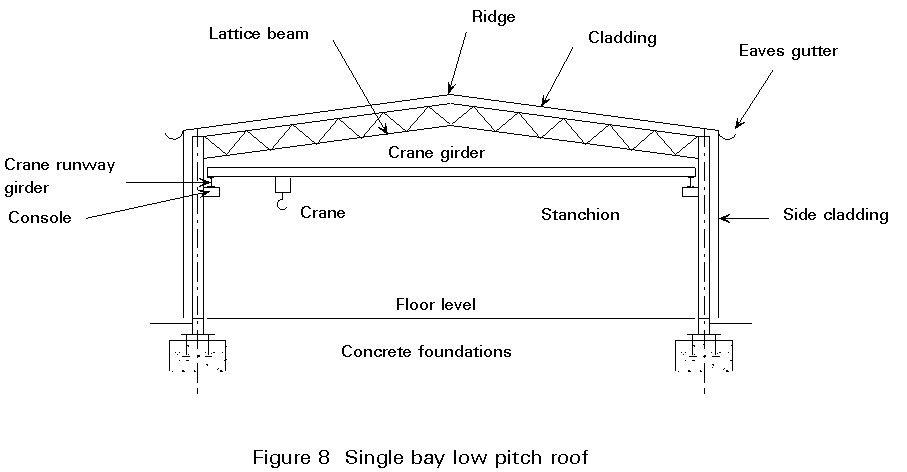

**Flat Roof Truss **

Flat trusses are key components in flat or low-pitched roofs. They are often required due to height restrictions, overhanging trees, or architectural specifications.

The trusses support the roof's weight. They balance loads across the structure. People use them in homes. They can replace steel beams in composite concrete slabs on commercial roofs. This makes the roofs stronger.

Flat trusses are complex to design and install. They cost more than simpler truss types. Design must include good drainage. It prevents water from pooling on the roof. This ensures long-term durability and performance.

Builders and designers focus on flat trusses. They meet specific architectural and regulatory requirements with structural economy. This makes them a preferred choice. People use these when they need or want flat or low-pitched roofs. They support both practical and aesthetic goals in construction projects.

A diagram showing common components of a Flat Truss

Example of a Flat Truss.

Mono Roof Truss

Mono roof trusses are also known as mono-pitch or skeleton trusses. They are a type of roof truss that resembles Fink trusses. Yet, these paths are designed to cover a greater distance with a less steep slope. Yet, designers have made them to cover longer distances. They have a gentler incline. They are common in sheds, garages, and small workshops. Commercial and industrial buildings favor these trusses. There, they're used where a low-pitched, single-sloping roof meets architectural or height limits. Their simple design makes them cost-effective for smaller spans. Yet, longer spans need extra reinforcement. This is unlike king and queen post trusses. They need a stable framework.

Triangle Truss

The Triangle Truss (Simple Triangular Truss) is the most basic truss design, forming a triangle with two diagonal top chords and a horizontal bottom chord. It is ideal for small structures, offering strength with minimal material, and is widely used in sheds and timber framing.

Monolithic Vaulted Roof Truss

This is a variation of the mono truss. It has a raised or vaulted center that adds interior space. This design change involves extending the center of the top chord upward. It keeps the bottom chords at the same angles. The result is a peaked or arched shape at the roof's center. It allows for larger windows or skylights and creates a more open feel.

Both truss types share a key design similarity. Yet, the mono-vaulted truss adds a raised center section. This requires careful engineering and support. This ensures the roof can handle more weight and stress well. It keeps the roof stable and strong over time.

Building and Construction Considerations when Choosing a Truss

Choosing the right truss type for a roof involves considering many factors. These factors include the roof's shape, span, and height limits. They also include the architectural needs, ceiling style, material availability, and load requirements.

Designers create King Post and Queen Post trusses for small to medium-sized buildings. Designers create Scissor, Attic, Fink, and Mono trusses for larger, more complex structures. They tend to be more costly.

Builders choose Hip, Gable, and Flat trusses to fit specific architectural requirements. The roof's shape determines its location.

Additionally, you must consider procurement times and installation ease. Professionals manufacture prefabricated trusses. They offer higher quality and save costs due to less onsite labor. They also are easier to install due to fewer onsite connections. Yet, they may have procurement times ranging from one to six months.

If trusses need a long delivery time, engineers can plan to build them on-site. This involves cutting timber and assembling the components with nail-plated connections. Stick-building can be time-consuming. Yet, it may be cheaper for small or custom projects.

What type of truss is suitable for roofing tiles?

Roof tiles look great. Yet, flat roofs or roofs with a low pitch cannot use them. Steep roofs – those with a pitch of over 31 degrees – can only have tiles installed on them.

Thus, the following roof trusses are suitable for roof tiles:

• It's a typical purlin-tick truss. It has two types of trusses: main and intermediate. It is for roofs with a span of 9 meters to 10 meters and a pitch of over 31 degrees.

• It has a purlin-tick truss with a wooden knee wall. Houses with an attic use this type of structure. In this instance, the pitch must exceed 31 degrees.

What roof truss is suitable for metal roof tiles?

Metal roof tiles provide a covering with lower requirements than traditional roof tiles. But, in this case, to use this type of covering, the truss must meet certain conditions. You cannot use metal roof tiles on flat roofs. If you plan to use steel sheeting for the roof, remember that you can only use it on a roof with a pitch over 9 degrees. Metal roof tiles with mineral or ceramic coating have greater requirements. In their case, the pitch must exceed 12 degrees.

You can use the following types of roof truss for metal roof tiles:

• This truss is for roofs with a span of 9 to 10 meters. The roof must have a pitch over 9 degrees for metal tiles. It must be over 12 degrees for tiles with mineral or ceramic coating.

• It is a purlin-tie truss with a wood knee wall. Houses with an attic and a pitch over nine degrees use it for metal tiles. If the pitch is over twelve degrees, they use coated metal tiles.

• It has a flat purlin-tie roof. It usually has one ridge purlin supported on queen posts. Roofs with a span of up to 8-9 meters use it. The allowed pitch is 6° to 18°. This is within the requirements for metal roof tiles.

• Builders prefer the lattice truss. They use it in wooden skeleton houses and concrete houses. Builders use it for gable roofs with a slight pitch of 14 degrees to 23 degrees, but with an unusable attic space. This pitch range meets the requirements for metal roof tiles.

Learn more about the basics of concrete design here to see how they play a vital role in construction materials.

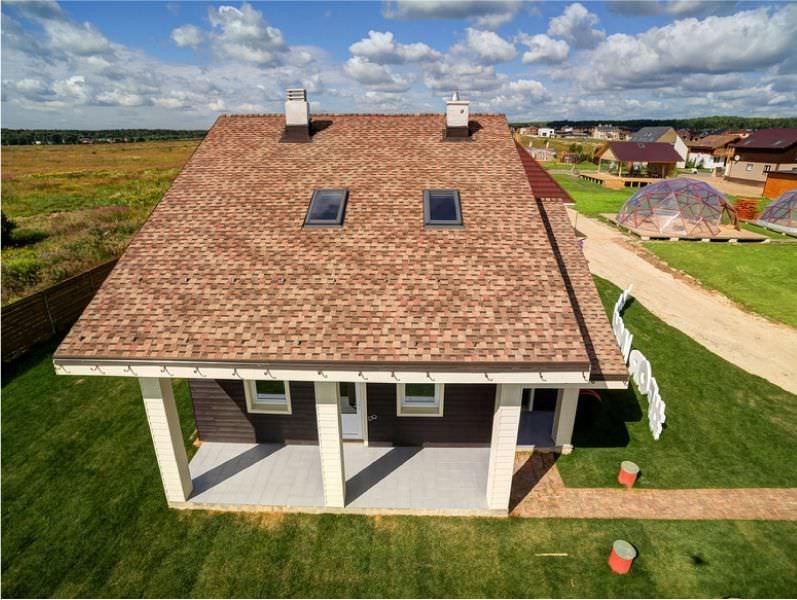

What type of roof truss is suitable for roof shingles?

To cover a roof with shingles, it must have a pitch of at least 15 degrees. Thus, the following types of trusses are suitable for a shingle roof:

• Typical purlin and tie truss (with a pitch of at least 15 degrees)

• Purlin-tick truss with a wooden knee wall (maintaining a pitch of at least 15 degrees)

• Flat purlin-tick roof (with a pitch of at least 15 degrees)

• Lattice truss (also here, the pitch must be at least 15 degrees).

Cost Analysis and Project Economics

The economic implications of truss design are multifaceted. The initial cost of the truss system, including materials, fabrication, and installation, is a significant factor. However, lifecycle costs, including maintenance, repair, and potential replacement, should also be considered.

Moreover, the choice of truss design can impact other project costs. For example, a truss system that allows for faster installation can reduce labor costs, while a truss that contributes to energy efficiency can result in lower energy costs over the life of the building.

Cost Benefits of Timber Roof Trusses

All of us love saving a little bit of money on our purchases. Picking the cheapest way to build your current or future home can take a lot of time and research.

You are planning to renovate or build a new home. Roof trusses can be one of the most cost-effective roofing options. They also have many advantages.

People have been using timber roof trusses for roof support since the 1500s. Roof truss patterns have undergone significant expansion since that time. Now, many building shapes and sizes can use their strength. You can make a roof truss fit the dimensions of a particular building. They are a great choice for homes with unique and modern shapes. This is due to their design flexibility.

Timber roof trusses are structural frameworks used to support and distribute loads in a roof system. Made from timber, these trusses are designed to span large distances and carry the weight of the roof, along with any additional loads such as snow or equipment. Timber roof trusses offer benefits such as sustainability, cost-effectiveness, and ease of assembly. They are often used in residential and commercial construction due to their strength, flexibility in design, and the natural aesthetic appeal of wood.

A timber roof truss typically consists of several key components:

1. Top Chord: The upper horizontal or inclined members that support the roof loads and transfer them to the supports or walls.

2. Bottom Chord: The lower horizontal member that connects the ends of the top chords, providing a horizontal tie and resisting tensile forces.

3. Web Members: The diagonal and sometimes vertical members between the top and bottom chords, which help distribute loads and provide stability. Common web configurations include triangles or other geometric patterns.

4. King Post: A vertical member that extends from the bottom chord to the top chord, often used in king post trusses to support the central portion and enhance load distribution.

5. Queen Posts: Vertical members located near the ends of the truss, connecting the top and bottom chords, commonly used in queen post trusses to support the roof and provide additional stability.

6. Joints and Connections: The points where different members meet, which are typically reinforced with metal plates or bolts to ensure structural integrity.

These components work together to create a strong and efficient structure that supports the roof and transfers loads to the building’s supports.

Cost Ranking for Different Truss Types

Costs can change based on various factors. These include size, complexity, location, and market conditions. Yet, a general cost ranking for trusses, from least to most expensive, is as follows. It includes their typical largest spans in meters/feet.

Flat Truss: The most basic and affordable option, with spans of up to 6 meters/19 feet.
King Post Truss: Simple and cost-effective, with spans of up to 10 meters/32 feet.
Queen Post Truss: features complexity, accommodating spans of up to 12 meters/39 feet.
Gable Truss: A familiar choice, suitable for short to moderate spans.
Fink trusses: are a common choice for residential and commercial buildings. They have spans of up to 25 meters/85 feet.
Attic Truss: Complex design for extra attic space, with spans of up to 30 meters/98 feet.
Mono Roof Truss: Single sloping plane, with spans up to 35 meters/115 feet.
The hip truss: is a more elaborate design. It has sloping rafters on all sides. It spans up to 45 meters/147 feet.
Scissor/Mono Vaulted Truss: It is a complex truss. Its angled bottom chords create a vaulted shape. It spans up to 50 meters/164 feet.

Please note that these spans are general estimates. They may vary depending on truss design, materials, and local building codes.

Bending Moment

The bending moment in trusses is crucial because it represents the internal forces that cause bending within structural members. In trusses, minimizing bending moments is essential for efficient load distribution, as they are primarily designed to carry axial forces (tension and compression). Excessive bending moments can lead to structural instability, increased material usage, or even failure. By understanding and calculating the bending moments, engineers can ensure the truss design is optimized for strength, safety, and cost-effectiveness, especially in long-span structures.

Advanced Truss Design and Technology

The truss design and construction field is continuously evolving, driven by advancements in technology and engineering. These innovations are transforming the way trusses are designed, fabricated, and installed.

From computer-aided design (CAD) software to computer numerical control (CNC) cutting machines, technology is playing a crucial role in optimizing truss geometry and materials. These tools allow for precise calculations and cuts, resulting in trusses that are more accurate, efficient, and cost-effective.

Innovations in Fabrication and Software

The advent of CAD software has revolutionized truss design. These programs allow engineers to create detailed 3D models of trusses, enabling them to visualize the structure and make necessary adjustments before construction begins.

In addition to design software, advancements in fabrication technology have also had a significant impact. CNC cutting machines, for instance, can cut truss components with extreme precision, reducing waste and improving efficiency.

Moreover, the integration of Building Information Modeling (BIM) in truss design and construction has enhanced collaboration among architects, engineers, and contractors. This technology allows all parties to work from a shared 3D model, improving communication and reducing errors.

Structural Calculation Software

Structural calculation software helps in calculating and analyzing roof trusses. It enables engineers to input parameters like loads, spans, and material properties to create accurate models of the truss system. The software automates complex calculations, checks for potential issues, and ensures the design meets building codes and standards, making the process more efficient and reliable.

The Future of Truss Design: Materials and Methods

Looking ahead, the future of truss design holds exciting possibilities. New materials, such as cross-laminated timber (CLT) and other engineered wood products, are being explored for their potential in truss construction.

In addition, innovative construction methods, such as modular and prefabricated trusses, are gaining traction. These techniques can accelerate construction timelines and reduce costs, making them an attractive option for residential projects.

As technology continues to advance, so too will the field of truss design and construction. It's an exciting time to be involved in this dynamic industry.

Structural Support and Load Distribution

Roof trusses play a critical role in providing structural support and distributing loads in residential buildings. They are designed to bear the weight of the roof and transfer these loads to the building's walls.

The design of a truss system is a complex process that requires a deep understanding of structural engineering principles. The goal is to create a truss that can withstand various loads, including dead loads (the weight of the truss itself and any permanent fixtures), live loads (temporary loads such as snow or furniture), and environmental loads (wind or seismic forces).

Load Path Analysis in Truss Systems

Load path analysis is a critical aspect of truss design. It involves determining how loads are transferred through the truss system to the supporting structure.

This analysis helps engineers ensure that the truss is designed to effectively distribute loads, reducing the risk of structural failure. It also informs the placement of truss members and connections, contributing to the overall efficiency and safety of the truss system.

Wind and Seismic Considerations

In addition to gravity loads, trusses must also be designed to withstand wind and seismic forces. These environmental loads can exert significant pressure on a truss, potentially leading to structural damage or failure.

Wind forces can cause uplift, lateral, or downward pressure on a truss. Seismic forces, on the other hand, can cause horizontal or vertical movement. In both cases, the truss must be designed to resist these forces, ensuring the safety and stability of the building.

Environmental and Economic Implications of Truss Design

The design and construction of roof trusses have significant environmental and economic implications. These factors are increasingly important in today's construction industry, where sustainability and cost-effectiveness are key considerations.

The choice of materials, the manufacturing process, and the lifecycle of the truss all contribute to its environmental footprint. Similarly, the cost of the truss system, including materials, fabrication, and installation, can significantly impact the overall project budget.

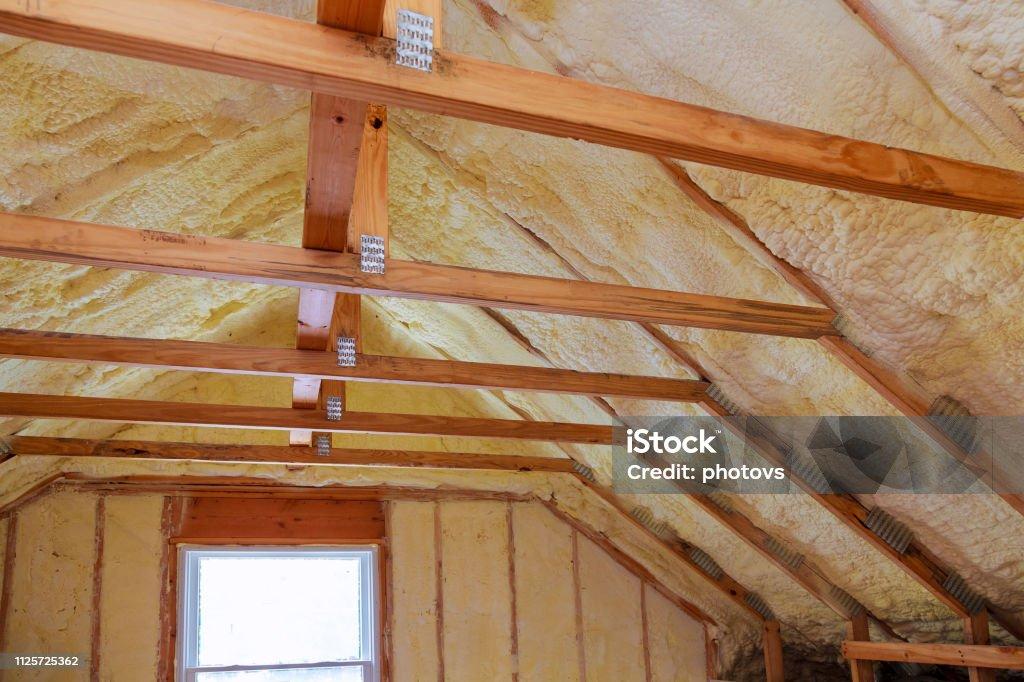

Sustainability and Energy Efficiency

Sustainability is a crucial aspect of modern truss design. This involves choosing environmentally friendly materials, such as sustainably sourced timber or recycled steel, and minimizing waste during the manufacturing process.

Energy efficiency is another important consideration. A well-designed truss system can contribute to the energy efficiency of a building by reducing heat loss through the roof, leading to lower energy consumption and reduced greenhouse gas emissions.

Case Studies and Innovative Applications

The application of roof trusses in residential design and construction is not limited to traditional forms and methods. Innovative truss designs and technologies are being used in a variety of residential projects, showcasing the versatility and potential of trusses in modern architecture.

Residential Projects Showcasing Truss Design

One example is a residential project that utilized a complex truss system to create a unique, undulating roof form. The trusses were custom-designed and fabricated using advanced software and CNC cutting technology, demonstrating the potential of digital fabrication in truss construction.

The Role of Trusses in Modern Architecture

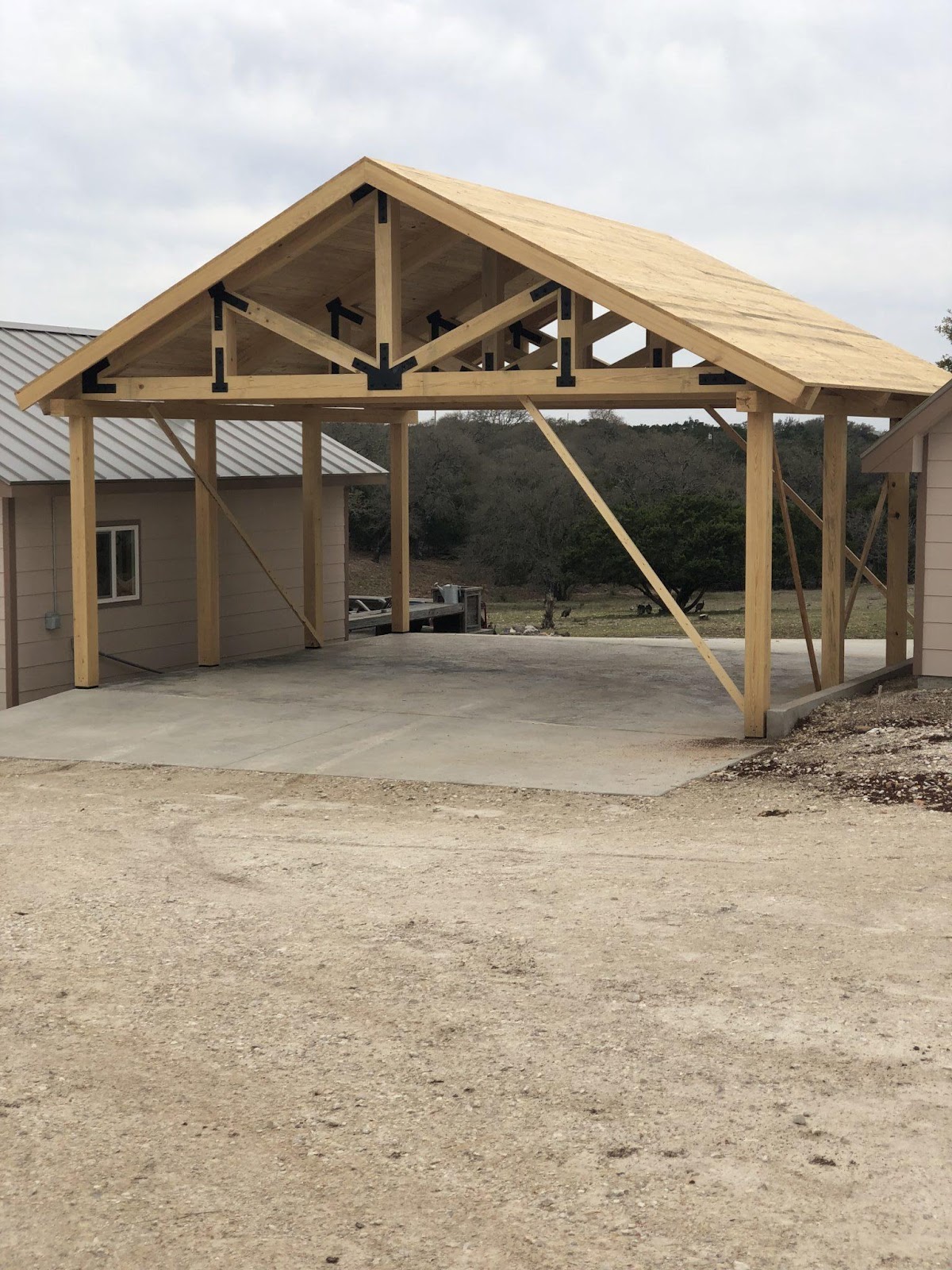

Trusses are not just structural elements; they can also contribute to the aesthetic and spatial qualities of a building. For instance, exposed trusses can add visual interest and create a sense of openness and height in interior spaces.

In conclusion, the role of trusses in residential design and construction is evolving, driven by advancements in technology, changing architectural trends, and the increasing demand for sustainable and cost-effective building solutions.

Conclusion: The Visionary Future of Roof Trusses

The future of roof trusses in residential design and construction is promising and exciting. With the continuous advancements in technology and materials, we can expect to see more innovative and efficient truss designs in the coming years.

Embracing Technological Advancements

The integration of digital tools, such as 3D modeling, BIM, and AI, will further enhance the design, fabrication, and installation processes of trusses. These technologies will enable more precise and optimized truss systems, contributing to the sustainability and resilience of our built environment.

The Importance of Continuous Learning and Adaptation

As the field of structural engineering continues to evolve, it is crucial for professionals and students alike to stay informed and adaptable. By embracing new knowledge and skills, we can collectively push the boundaries of truss design and construction, shaping a better and more sustainable future for residential architecture.

StruCalc helps calculate roof trusses, load bearings, walls, and columns for your structural engineering designs. Try a free 30 day trial today.
