The Importance of Structural Analysis in Engineering

In the realm of engineering, structural analysis holds a pivotal role. It is the backbone that ensures the safety and durability of our buildings and infrastructure. This process involves intricate calculations, determining the effects of loads on physical structures and their components. It’s a critical step in preventing catastrophic failures that can lead to loss of life, financial loss, and environmental damage. In this article, we delve into the importance of structural analysis, the consequences of inadequate analysis, and the role of structural analysis programs. We aim to provide a comprehensive understanding of this crucial aspect of engineering. Whether you’re a seasoned professional or an engineering student, this article will offer valuable insights into the world of structural analysis.

The Essence of Structural Analysis

Structural analysis is a cornerstone of civil engineering. It’s a process that involves understanding the behavior of structures under various loads and conditions. The primary goal is to ensure that structures can withstand the forces they’re subjected to. This includes everything from the weight of the building materials to the impact of natural disasters. Understanding material properties, load distributions, and external environmental factors is crucial. It’s a complex task, but one that is vital for the safety and longevity of our structures. In essence, structural analysis is the science of predicting the performance of structures under different conditions. It’s a critical step in the design and construction process.

Core Principles of Structural Analysis

To truly grasp structural analysis, it’s important to understand a handful of core concepts that underpin every calculation and decision.

Equilibrium Conditions

At the heart of structural stability is equilibrium. For a structure to remain at rest, the sum of all forces and the sum of all moments acting upon it must be zero. This principle underpins everything from the design of a simple shelf to the tallest skyscraper—if forces aren’t balanced, the structure simply won’t stand.

Compatibility of Displacement

Structures aren’t just collections of isolated pieces; they’re interconnected systems. When a structure deforms under load, the points where members meet must remain joined—no gaps, no overlaps. This compatibility ensures that all parts of the structure move together, maintaining integrity even as forces shift and materials flex. This principle becomes especially important in indeterminate structures, where we need extra equations—often derived from compatibility—to solve for unknown forces.

Principle of Superposition

For linearly elastic structures, the effects of loads add up: the total effect of several loads acting together is simply the sum of their individual effects. Imagine a beam loaded in two places; the total deflection is just the sum of the deflections caused by each load alone. This principle allows engineers to break down complex loading scenarios into more manageable pieces.

Work-Energy Principle

Energy considerations are powerful tools in analysis. The work done by external forces as a structure deforms is stored as strain energy within the structure. In practical terms, the work put into deforming a beam by pushing or pulling it becomes energy held in its shape—energy that can be calculated and used to predict behavior under further loading.

Virtual Work Principle

A little imagination goes a long way. The virtual work principle says that if you imagine (or “pretend”) a small, hypothetical movement in a structure, the work done by real forces during this virtual displacement must balance out to zero if the structure is in equilibrium. This elegant idea, first formalized by Johann Bernoulli, provides a powerful method for solving for unknown forces or moments.

Structural Idealization

Real-world structures are complex, but analysis often requires us to simplify. Structural idealization means representing beams, frames, and trusses as simple lines or points—distilling a complex reality into a model we can actually work with. The key is to choose a model that captures the essential behavior of the structure without unnecessary complication.

Method of Sections

Sometimes, the best way to see what’s going on inside a structure is to “cut” it—at least in your mind. The method of sections involves slicing through a member and considering the equilibrium of just one part. This technique is invaluable for finding internal forces (like shear, bending moment, and axial force) at specific locations.

Free-Body Diagrams

No analysis is complete without a good free-body diagram. These sketches strip a structure down to its essentials, showing all forces and moments acting on a part or the whole. A well-drawn free-body diagram is the starting point for practically every calculation in structural engineering.

By mastering these fundamental principles, engineers can reliably predict how structures will respond to the myriad forces they face, from everyday use to extraordinary events. Structural analysis, then, is not just about crunching numbers—it’s about understanding how the built world stands strong.

Understanding Structural Idealization

Structural idealization is a fundamental concept in structural analysis, acting as a bridge between the real world and theoretical calculations. Essentially, structural idealization involves taking a complex, real-life structure and simplifying it into a model that is easier to analyze—without sacrificing the accuracy of results. This process allows engineers to represent complicated shapes and loading scenarios using more manageable elements, such as lines or points, based on the neutral axis of beams and columns.

Why is this simplification necessary? Most buildings and infrastructure projects involve intricate geometries, various materials, and unpredictable forces—from the uneven distribution of furniture inside a building to shifting loads caused by wind or earthquakes. Analyzing every minute component would not only be impractical but also overwhelming, even with advanced tools like SAP2000 or STAAD.Pro.

By idealizing a structure, we focus on the essential features that influence its performance. A beam, for example, might be represented as a simple line subject to specific forces, while a frame or truss gets boiled down to interconnected lines at pin joints or rigid connections. The art of structural idealization lies in choosing a model that accurately reflects how the real structure will behave under loading, yet remains straightforward enough for thorough and efficient calculations.

This careful balance ensures that the results of our analysis—such as deflection, stress, and overall stability—are both reliable and actionable for design and safety decisions. The accuracy of these predictions is directly tied to how well the idealized model mirrors the actual structure’s critical behaviors.

What Is a Free-Body Diagram and How Is It Constructed?

A free-body diagram is an essential tool in structural analysis. Think of it as a way to visualize all the forces and moments acting upon a structure—or just a part of it—by representing them in a simplified sketch.

To construct a free-body diagram, start by isolating the structure (or segment) you want to analyze. This could be something as large as an entire bridge beam or as focused as a single joint. Once isolated, you represent every force acting on that component: this includes external loads, supports, and any forces passed from connected segments. Don’t forget to include moments, which help capture any rotational effects.

Every arrow or symbol you draw represents a force or moment the structure experiences. The key is accuracy—your diagram must reflect equilibrium, mirroring how forces truly act on the real structure. Engineers often rely on these diagrams, whether they’re sketching on the back of an envelope or inputting conditions into software like AutoCAD or MATLAB, to predict how structures will perform under stress.

By breaking down complex structures into manageable parts using free-body diagrams, you create a foundation for performing precise calculations. This approach is invaluable, whether you’re assessing the entire system or zeroing in on a critical component.

What Are Equilibrium Conditions in Structural Analysis?

At the heart of structural analysis lies the concept of equilibrium conditions. Simply put, for a structure to remain stable and secure under applied loads, it must achieve a state of balance. This means that all the forces and moments (think of moments as rotational forces) acting on the structure must effectively cancel each other out—leaving the structure at rest rather than in motion.

In practical terms, these equilibrium conditions ensure:

• The total of all horizontal forces equals zero.
• The total of all vertical forces equals zero.
• The total of all moments acting on the structure equals zero.

Think of it as ensuring a seesaw doesn’t tip over—everything must be balanced just right. For engineers, verifying these equilibrium conditions is a foundational step before moving on to more complex analysis. Without achieving equilibrium, any further design or safety checks would be built on shaky ground.

Key Types of Structural Members

Understanding the different components that make up a structure is fundamental in civil engineering. Structural members are the building blocks that, together, enable structures to stand firm against various forces and loads. Let’s take a closer look at the primary types of structural members:

• Beams
  Beams are long, slender members designed primarily to bear loads applied perpendicular to their length. Think of the floor joists in your house or the horizontal supports spanning across a bridge—these are classic examples of beams. They come in many cross-sectional shapes, such as rectangular, circular, or even the familiar I-beam profiles used in skyscrapers and warehouses. Their main job? To carry and transfer loads safely from one point to another.
• Columns and Tension Members
  Columns serve as the vertical pillars that support the weight above them. You’ll see columns holding up overpasses, supporting roofs, or acting as the main supports in multi-level buildings. They resist compressive forces, maintaining the structure’s integrity from the ground up. In contrast, tension members, as the name suggests, are designed to carry pulling forces—they’re often found in suspension bridges, where cables stretch to hold massive loads.
• Frames
  Frames are structural systems composed of both vertical and horizontal members—namely, columns and beams—connected together to create a coordinated support structure. Take, for instance, the steel skeleton of a modern office building; its rigidity and flexibility derive from how these members work in harmony. Frames can be rigid, with fixed connections that prevent movement, or flexible, which allow some movement at the joints to absorb energy, such as during an earthquake.
• Trusses
  Trusses are intricate frameworks made up of straight members connected at joints, typically forming triangular units. These are the go-to choice for bridges, stadium roofs, and transmission towers, providing exceptional strength with minimal material. Truss members channel forces directly through the joints, creating efficient and stable structures even when spanning large distances.

Each of these members plays a distinct role in how a structure behaves and responds to various stresses. When combined thoughtfully in the design process, they work together to produce safe, resilient, and lasting structures that define our skylines and connect our communities.

Understanding the Method of Sections

One key technique engineers use to assess internal forces within a structure is the method of sections. This approach is particularly handy when you need to analyze specific members in a complex framework without wading through every single joint and connection. Here’s how it unfolds:

1. Imaginary Cutting for Clarity: An engineer imagines a straight “cut” through the structure, slicing it so that the section passes through the member or members of interest. This split should create two distinct parts—think of it like surgically examining the inside of a chocolate bar to check the caramel layer.
2. Analyzing Either Side: With the structure now “opened up,” attention shifts to just one of the two new sections. The forces within the cut members are revealed and need to be evaluated to maintain overall equilibrium.
3. Setting Up Equilibrium Equations: For the chosen section, the engineer applies the basic rules of statics: sum of forces in horizontal and vertical directions, and sum of moments, must all equal zero. By balancing these equations, it becomes possible to directly solve for the unknown internal forces—axial forces (which stretch or compress), shear forces (which cause sliding), and bending moments (which lead to curving or rotation).

This method not only saves time but also zeros in on the key forces at play—vital for ensuring each structural component faithfully does its job. The method of sections, alongside related approaches like the method of joints, is a foundational tool used by everyone from budding civil engineering students to veteran professionals working on everything from simple beams to the sprawling trusses of Golden Gate Bridge-scale projects.

Understanding Trusses and Their Analysis

Trusses play a fundamental role in structural engineering. At their core, trusses are assemblies of straight, slender elements—often made from steel or timber—joined together at their endpoints. Picture the intricate web of triangles that forms the backbone of a bridge or the support structure in large roofs; that’s the classic truss at work.

When analyzing trusses, engineers make a few key assumptions to simplify the process. Loads and forces are considered to act only at the joints—the points where the members connect. These joints are typically modeled as frictionless pins, allowing the connected members to pivot freely. This approach makes it possible to break down the complex interplay of forces into manageable calculations, ensuring each component will safely carry its share of the load.

Truss analysis involves determining the internal forces in each member—tension or compression—under various loading conditions. By understanding how these elements work together, engineers can design efficient structures that maximize strength while minimizing material use. The reliability of trusses is one reason you’ll find them in everything from stadium roofs to highway overpasses.

Understanding Compatibility of Displacement

Another foundational concept in structural analysis is compatibility of displacement. This principle ensures that when a structure deforms under load, all connected parts move together in harmony—no gaps, separations, or mismatches develop at joints. Imagine a puzzle where every piece must stay tightly joined, even as the entire image bends or twists. In engineering terms, this means that as beams, columns, or supports respond to applied forces, their points of connection remain physically united.

Why does this matter so much? In the analysis of indeterminate structures—those with more unknown forces than equilibrium equations—compatibility of displacement comes into play. It allows engineers to set up additional relationships between deformations, ensuring that everything fits together correctly after the structure moves. For example, consider a propped cantilever beam: to solve for all the reaction forces, we need one more equation beyond basic equilibrium. That extra piece comes from understanding how the structure’s points of support move relative to each other—or, crucially, how they don’t move apart.

Mastering compatibility of displacement ensures robust, reliable design. By applying this principle, engineers confirm that every element works together as intended, preserving the structural integrity that keeps our buildings, bridges, and infrastructure safe.

Understanding Frames in Structural Engineering

Frames are fundamental components in many structures, combining vertical and horizontal members to create a sturdy skeleton for buildings and bridges alike. Typically, the vertical members are known as columns, tasked with transferring loads downward, while the horizontal members—beams—span across spaces, distributing weight and providing support.

When it comes to classification, frames can be grouped in a couple of key ways:

• Sway vs. Non-Sway Frames:
  • Sway frames permit lateral (sideways) movement, which becomes especially important in areas prone to wind or seismic activity. Because of this, engineers must account for horizontal forces and potential displacement in their analysis and design.
  • Non-sway frames, on the other hand, are designed to resist this lateral movement, maintaining their position even under external loads. This makes them ideal for structures where stability is a top concern.
• Rigid vs. Flexible Frames:
  • In rigid frames, the joints where beams and columns meet are fixed. This rigidity means the angles between members don’t change under load, providing extra strength and resisting deformation.
  • Flexible frames feature joints that can rotate or move to some degree, which allows for controlled displacement but may limit the frame’s ability to resist larger forces.

Recognizing these differences is crucial when designing any structure, as the type of frame used will influence not just performance, but also the approach required for safe, reliable engineering.

Categories of Civil Engineering Structures

When we talk about civil engineering structures, we’re referring to an impressive variety of forms and functions that populate our built environment. From the soaring silhouettes of skyscrapers in New York City to the elegant span of the Golden Gate Bridge, civil engineering is responsible for the structural skeletons that define modern life.

Common types of structures include:

• Buildings – Residential homes, commercial offices, high-rise apartments, warehouses—each tailored to its unique purpose but all reliant on robust structural integrity.
• Bridges – Ranging from simple beam bridges over streams to complex cable-stayed giants crossing bays, bridges are feats of creative engineering meeting practical necessity.
• Towers – Think telecommunications masts, radio towers, or observation platforms, each designed to withstand wind loads and other environmental forces.
• Arches – Often used in bridges and entryways, arches distribute loads efficiently and have stood the test of centuries, from Roman aqueducts to contemporary architecture.
• Tensile and Cable Structures – Modern stadium roofs, suspension bridges, and even some striking facades leverage the strength of cables and tensioned fabrics to create open, airy spaces.

Each of these structures is composed of different structural members—beams, columns, frames, trusses, and tension elements—all carefully engineered to perform specific roles within the greater whole. Understanding these categories and their unique behaviors is foundational to effective structural analysis.

Understanding the Virtual Work Principle

The virtual work principle is a fundamental concept in structural analysis, playing a critical role in evaluating how structures respond to forces. At its core, the principle states that for a structure in equilibrium, the total work done by external forces during any imagined (or “virtual”) small movement is zero. While this may sound theoretical, it’s a practical and powerful tool for engineers.

Imagine you have a beam supported at two points and subjected to a load. By applying a small hypothetical displacement—one that doesn’t actually occur in real life—engineers can calculate forces and internal stresses without resorting to complex, time-consuming algebra for every scenario. This technique helps determine unknown reactions and internal forces within a structure, especially when conventional calculation methods become unwieldy.

In practice, the virtual work principle is a staple in analyzing statically indeterminate structures—those systems where the forces and moments can’t be found by equilibrium equations alone. By using virtual displacements, engineers can efficiently solve for deflections and check structural safety. This methodology is frequently used in both education and professional design—whether you’re learning the ropes or running advanced analysis using software like STAAD.Pro or RISA.

Ultimately, the virtual work principle streamlines otherwise complex calculations, deepening our understanding of how real-world structures will perform under a variety of conditions.

Applying the Principle of Superposition in Structural Analysis

One of the foundational concepts at the heart of structural analysis is the principle of superposition. This principle is especially relevant when dealing with linearly elastic structures—a common scenario in civil engineering. But what does it actually mean in practice?

Simply put, the principle of superposition allows engineers to break down complex loading situations into smaller, more manageable parts. If a structure is subjected to multiple loads at once, we can analyze the effect of each load separately. Then, by combining (or “superposing”) the individual effects, we accurately predict the structure’s overall response.

For example, imagine a cantilever beam with two separate weights applied at different points. Instead of grappling with both loads at once, the engineer first calculates the displacement or stress caused by the first weight alone, then repeats the process for the second. The total displacement at a specific point—say, at the beam’s tip—will simply be the sum of the displacements from each loading.

This principle not only simplifies calculations but also enhances accuracy, especially when using advanced structural analysis software like SAP2000, ETABS, or StruCalc. By leveraging the superposition principle, these tools swiftly process multiple scenarios, saving valuable time and ensuring safer, more resilient designs.

In essence, the principle of superposition is a powerful ally in structural analysis. It provides clarity, efficiency, and precision, ensuring that structures remain safe even under the most intricate combinations of forces.

Columns and Tension Structures: What Sets Them Apart?

When it comes to the basic building blocks of structural engineering, two fundamental elements come to mind: columns and tension structures. Let’s break down what each is, and how their roles differ within the framework of a structure.

Columns:
Think of columns as the strong, silent supporters of any building. These are the vertical members designed primarily to bear loads that act along their length—what engineers call axial compression. Picture the marble columns of the Parthenon or the familiar support posts in your local parking garage. Whether round, square, or rectangular, columns come in many shapes and sizes. In cases where even more strength is needed, engineers might use built-up columns—assemblies made from combining multiple standard sections to share the load.

Tension Structures:
By contrast, tension structures do the opposite job. Rather than standing firm against compressive forces, they’re designed to resist being pulled apart by forces in tension. You see this principle at work in cable-stayed bridges, suspension bridges like the Golden Gate, or even the humble guy wires keeping a radio tower upright. Tension structures keep elements anchored and taut, balancing the push of columns with strategic pulls.

Key Differences:

• Columns handle compression—they’re squeezed by the weight above.
• Tension structures handle tension—they’re stretched by the forces they’re holding back.
• Both are essential, but serve fundamentally different roles in keeping a structure stable and secure.

Understanding these elements and their differences is critical for any engineer aiming to design structures that stand the test of time (and gravity).

Understanding Beams and Their Classification

Beams are fundamental elements in structural engineering, known for their ability to support loads primarily by resisting bending. Simply put, a beam is a long, slender member whose length is considerably greater than its width or height. You’ll encounter beams spanning across floors, ceilings, and bridges—playing a leading role in distributing weight and keeping structures upright.

Beams aren’t a one-size-fits-all affair. They come in various shapes and classifications, each suited for specific applications and load conditions:

• By Shape: Common cross-sectional shapes include rectangular (typical for wood and concrete beams), circular, and triangular forms. Steel beams often feature standard sections such as I-beams (“I-sections”), channels, tees, and angles, each designed for maximum strength and efficiency.
• By Function: Beams can be classified based on the way they’re supported and loaded:
  • Simply Supported Beams: Supported at both ends but free to bend in the middle.
  • Cantilever Beams: Fixed at one end and free at the other—think of balconies extending from a building.
  • Continuous Beams: Stretch over more than two supports, common in bridges and large floors.

Their main task is withstanding forces applied along their length, ensuring buildings and bridges don’t just stand, but stand safely for years to come.

Unit Conversion in Structural Analysis

A firm grasp of unit conversion is fundamental in structural analysis. Engineers often work with both the International System of Units (SI) and the United States Customary System (USCS), depending on the project’s location or the codes in use. Ensuring compatibility and accuracy means converting values between systems with care—avoiding costly miscalculations.

Commonly Used Units

• SI Units: meters (m) for length, kilograms (kg) for mass, and newtons (N) for force.
• US Customary System: feet (ft) for length, pounds (lb) for force, and slugs for mass.

How to Convert Between Systems

Converting between these systems involves applying standard conversion factors:

• Length:
  1 meter ≈ 3.28084 feet
  1 foot ≈ 0.3048 meters
• Force:
  1 newton ≈ 0.224809 pounds-force
  1 pound-force ≈ 4.44822 newtons
• Mass:
  1 kilogram ≈ 2.20462 pounds-mass
  1 slug ≈ 14.5939 kilograms

For instance, if you have a beam length measured in meters but your calculations require feet, multiply your measurement by 3.28084. Similarly, for a force value in newtons needed in pounds-force, multiply by 0.224809.

The Role of SI Prefixes

When working with very large or small numbers in structural calculations, SI prefixes such as kilo (k, 10³), mega (M, 10⁶), and milli (m, 10⁻³) help keep values manageable. For example, 5,000 newtons can be written as 5 kN, and 0.002 meters as 2 mm.

Practical Tips

• Double-check units before plugging numbers into analysis software or equations.
• Use unit conversion tables or trusted calculators (such as those from NIST or Wolfram Alpha) for accuracy.
• Stick to one system throughout a calculation when possible to minimize confusion.

Mastery of these conversions is not just about mathematical precision—it’s an essential practice that upholds safety, compliance, and clear communication across international and interdisciplinary teams.

Common Systems of Units in Structural Analysis

When it comes to structural analysis, precision is key—and that starts with the units we use. Engineers typically rely on two primary systems of measurement: the International System of Units (SI) and the United States Customary System (USCS).

International System of Units (SI): Widely adopted across the globe, the SI system forms the backbone of most scientific and engineering calculations. Here, the meter (m) is the standard unit for length, kilogram (kg) for mass, and second (s) for time. Force is measured in newtons (N), which is the amount of force required to accelerate a one-kilogram mass by one meter per second squared. For structural calculations, the standard value for gravitational acceleration is 9.81 m/s².

United States Customary System (USCS): In the United States, the USCS is still commonly used in practice. Within this system, the foot (ft) serves as the basic unit of length, the second (s) remains the unit for time, and force is measured in pounds (lb). Interestingly, mass is not measured in pounds but in slugs—a unit unique to this system. One slug is the mass accelerated at 1 ft/s² by a force of one pound.

Both systems are valid for structural analysis, but it’s essential to stick to one throughout a project to avoid costly conversion errors. Many engineering software suites allow for selections between these systems, making life a bit easier for engineers working across borders or projects.

It’s a complex task, but one that is vital for the safety and longevity of our structures. In essence, structural analysis is the science of predicting the performance of structures under different conditions. It’s a critical step in the design and construction process.

Understanding the Work-Energy Principle in Structural Analysis

One of the fundamental concepts in structural analysis is the work-energy principle. But what does this principle mean, and why is it so important for engineers?

At its core, the work-energy principle explains the relationship between the forces applied to a structure and the energy stored within that structure as it deforms. When an external force acts on a beam, column, or any load-bearing element, it causes the structure to change shape ever so slightly. As this happens, work is done on the structure—think of it as the force pushing over a specific distance. That ‘work’ doesn’t just disappear; instead, it’s stored inside the structure as strain energy.

Here’s why this matters:

• The amount of work done by external forces (like the weight of furniture on a floor or the winds pressing against a bridge) is exactly balanced by the energy stored in the structure—assuming no energy is lost to heat or other effects.
• This balance—often described mathematically as ‘work in’ equals ‘energy stored’—enables engineers to predict how much a structure will deflect or bend under various loads.

In practical terms, the work-energy principle helps engineers:

• Estimate deformations: By knowing how much energy the structure can absorb before reaching its limits, we can predict how much it will move when loaded.
• Design safer structures: Understanding how energy is stored and released helps in creating buildings and bridges that flex just enough under pressure without collapsing.

A classic visualization is the load-deformation diagram, which plots the amount of force applied to a structure against how much it deforms. The area under this curve represents the strain energy in the system—a powerful tool for assessing structural integrity before a single beam is lifted into place.

By applying the work-energy principle, engineers ensure that our built environment remains both strong and resilient—no matter what forces it might face.

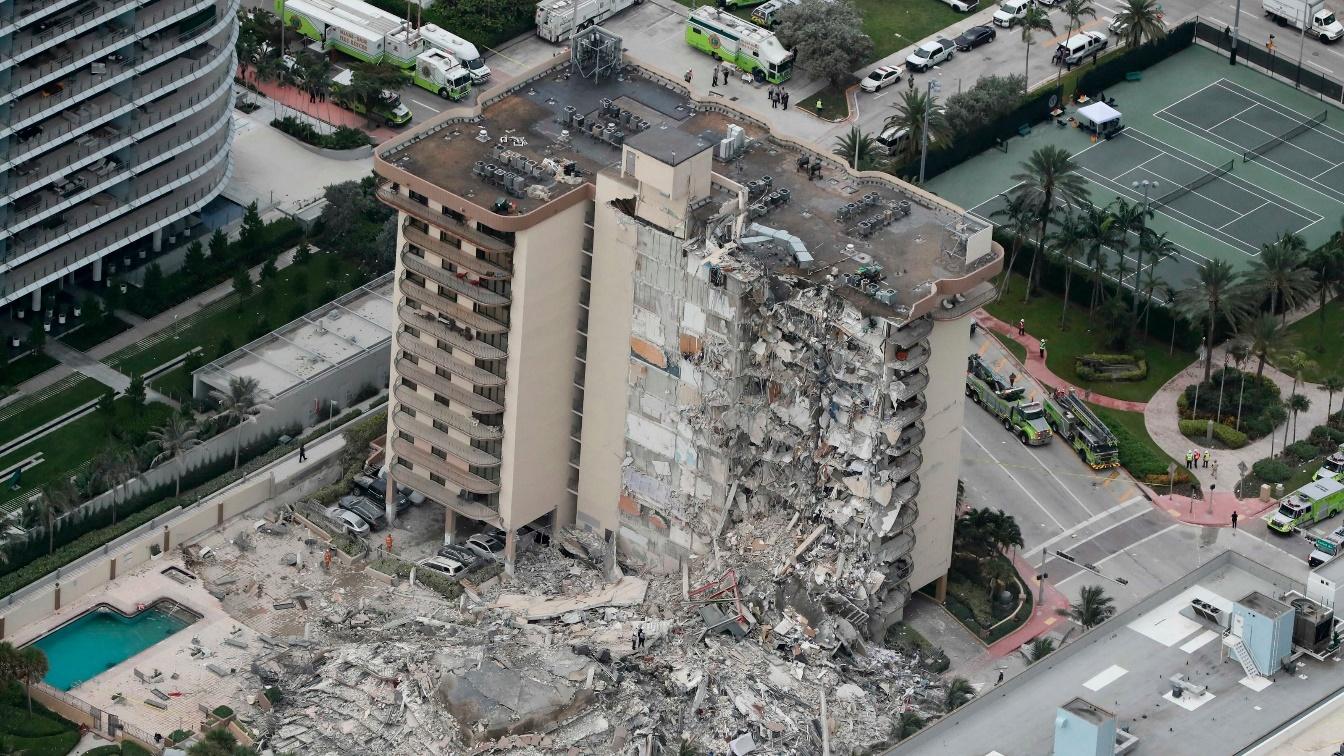

Consequences of Inadequate Structural Analysis

Inadequate structural analysis can lead to catastrophic consequences. These can range from financial losses to, in the worst cases, loss of life. Structural failures can occur due to a variety of reasons. These include poor design, substandard materials, or failure to consider external factors like weather conditions. Such failures not only result in financial loss but also damage the environment. They can lead to a loss of trust in the engineering profession. Therefore, thorough and accurate structural analysis is not just a professional obligation, but an ethical one too.

Structural Failure Analysis: Learning from Disasters

Structural failure analysis is a forensic process. It aims to determine the causes of collapses or malfunctions. Through this process, engineers can learn valuable lessons. These lessons can help prevent similar disasters in the future. For instance, the collapse of a building can be traced back to design flaws. These flaws could have been identified with thorough structural analysis. Thus, failure analysis serves as a stark reminder of the importance of meticulous structural analysis.

Structural Analysis Programs: A Boon for Engineers and Students

The advent of technology has brought about significant changes in engineering. One such change is the development of structural analysis software. These programs enhance the accuracy and efficiency of engineering projects. They allow for complex calculations and simulations to be conducted with ease. Thus, these programs are not just tools, but a boon for those involved in the field of structural analysis.

The Role of Building Codes and Standards

Building codes and standards play a pivotal role in structural analysis. They provide guidelines to ensure safety and durability of structures. These codes are often based on extensive research and historical data. They help in mitigating risks associated with structural design. In essence, they serve as a roadmap for engineers, guiding them through the complex process of structural analysis.

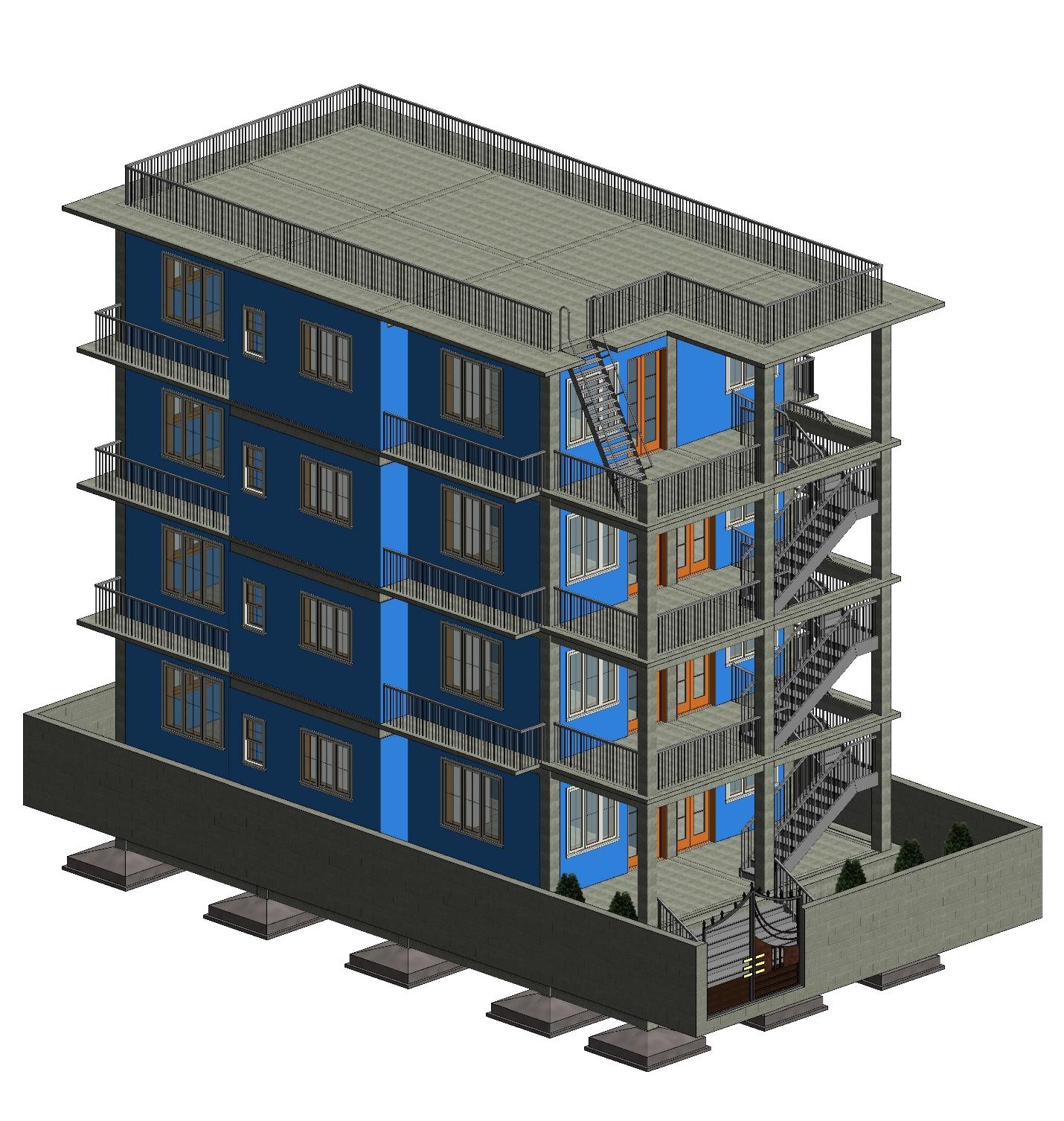

Advancements in Structural Analysis: From Manual Calculations to AI

The field of structural analysis has seen significant advancements over the years. From manual calculations, we have moved to computer-aided engineering. Modern tools like finite element analysis (FEA) and 3D modeling have revolutionized the process. They allow for more accurate and efficient analysis. The future holds even more promise with the potential of AI and machine learning. These technologies could further enhance the precision and speed of structural analysis.

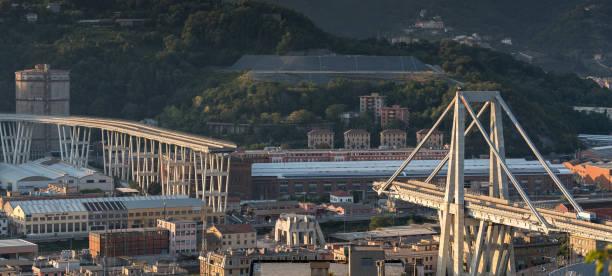

Case Study: The Morandi Bridge Collapse

The Morandi Bridge collapse in Italy is a stark reminder of the importance of structural analysis. The disaster resulted in significant loss of life and property.

Investigations revealed that inadequate structural analysis was a key factor. This case underscores the critical role of thorough and accurate structural analysis in ensuring safety.

Learn more – Real-World Success Stories: How Structural Engineering Software is Making a Difference in Construction Projects

The Future of Structural Analysis in Engineering

The future of structural analysis is promising, with advancements in technology paving the way. Real-time monitoring and analysis of structures are becoming increasingly feasible. Machine learning and artificial intelligence are set to revolutionize the field. These technologies can automate complex calculations and provide more accurate predictions. The integration of these technologies will enhance the efficiency and accuracy of structural analysis. This will ultimately contribute to safer and more sustainable engineering practices.
